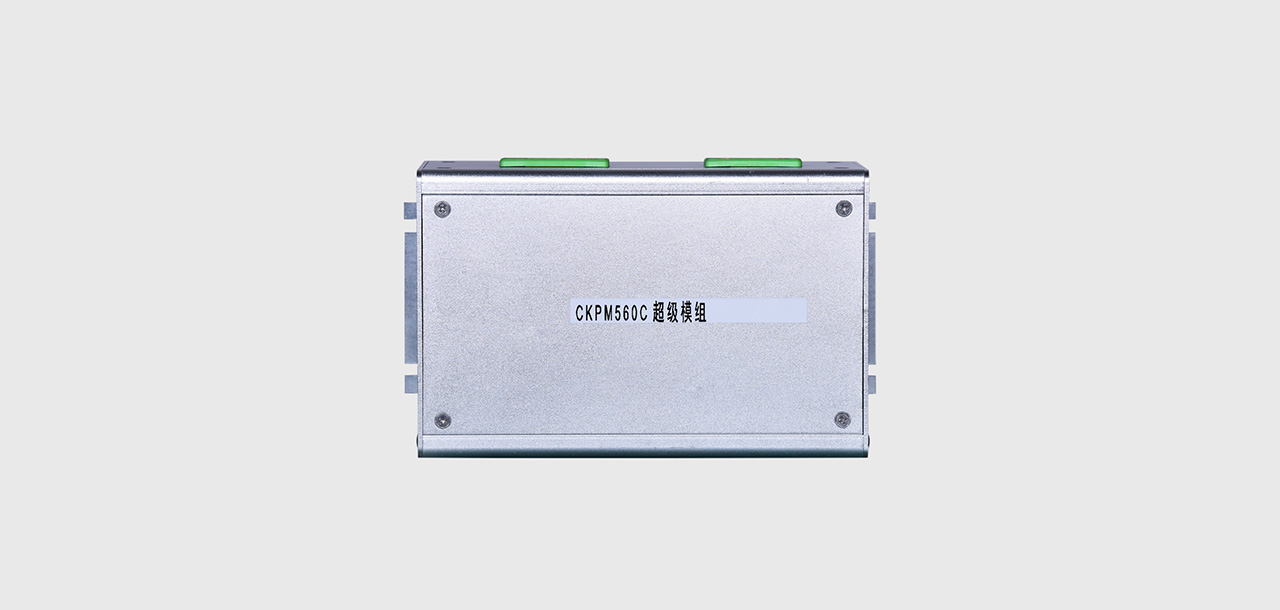

CKPM560 super module, a super capacitor module power supply specially designed for relay protection devices; can be widely used in power industry switch stations, power distribution stations, ring network cabinets, intelligent box-type substations, intelligent switch controllers and relay protection needs Uninterrupted power supply occasions. The main technical indicators meet the relevant specifications of State Grid Corporation and China Southern Power Grid Corporation.

This power supply is suitable for supplying power to the rated voltage DC27V relay protection device; the device comes with a complete set of super capacitors as a backup power supply, which can effectively provide the power requirements of the control unit, communication unit and switching unit of the FTU, and can ensure that the external input In the event of a power failure, the load is continuously supplied with power.

Features

High protection; the entire power supply is modularly packaged with a metal shell, anti-oxidation, moisture-proof and dust-proof design, and the protection level can reach IP55 or above;

High anti-vibration level; the power supply is anti-vibration treatment, and the anti-vibration level meets the requirements of GB/T11287-2000 standard I level; vibration shock: meets the GB/T11287-2000 standard I level requirements; protection meets the GB4208-2008 standard IP55 and above requirements.

Strong pressure resistance; impact withstand voltage without discharge arc phenomenon, no breakdown;

Stable performance; control output: electric shock rated power AC 250V/8A, 380V/5A or DC 110V/1A pure resistance load, electric shock life on and off ≥105;

Assembly function; the super module contains a wealth of practical functions, which can easily realize advanced programming; assembly function, allowing Easy Language programming to support assembly code, CALL, etc.; thread injection function, global injection class, memory injection class, input method injection, etc., complex All functions can be done with one line of code.

Intelligent recognition; the function of looking for pictures, colors and words, this function is convenient and practical, there are first-generation image recognition, second-generation image recognition, third-generation image recognition, and fourth-generation image recognition. One line of code easily realizes powerful recognition functions such as image, color, word, and number recognition on the screen or in the background window；

Memory operation function; memory class, pointer class, driver read and write memory and NT read and write memory, etc.;
