Description：

The types of voltage transformers are full en-closed structure of outdoor cast-resin insulation.They have much merit, such as: electric arc resistance, ultraviolet ray and aging resistance,long creepage distance，little partial discharge and large caliber of resistance to over-voltage.They are used for metering electric energy; voltage control and relay protection in the electric system up to rated frequency 50Hz or 60Hz and rated voltage 24kV The transformers can be executed according to the standards IEC61869-1&3.

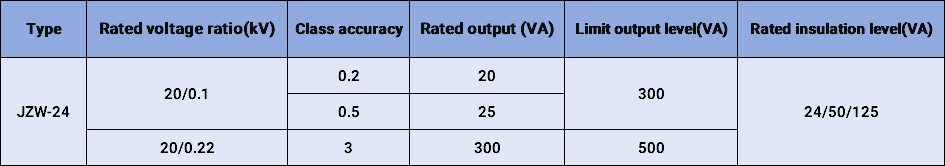

Main technical parameter：

Outdoor Cast-resin insulated

Rated Insulation level:24/50/125kV

Voltage in the secondary windings(kVef):3

Thermal limiting output:300VA Ins.Cl.:E

Ambient temperature:-40℃-+40℃

Creepage distance:770mm

Rated frequency(Hz):50 or 60

Pollution level:IV

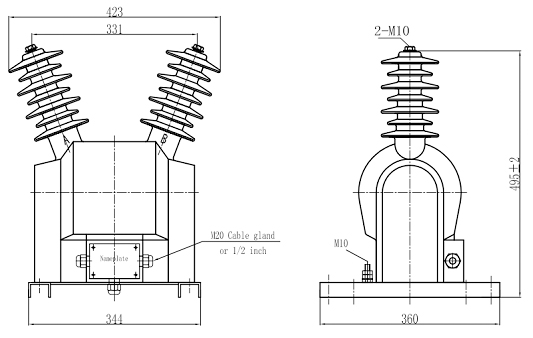

Outline dimension drawing：
